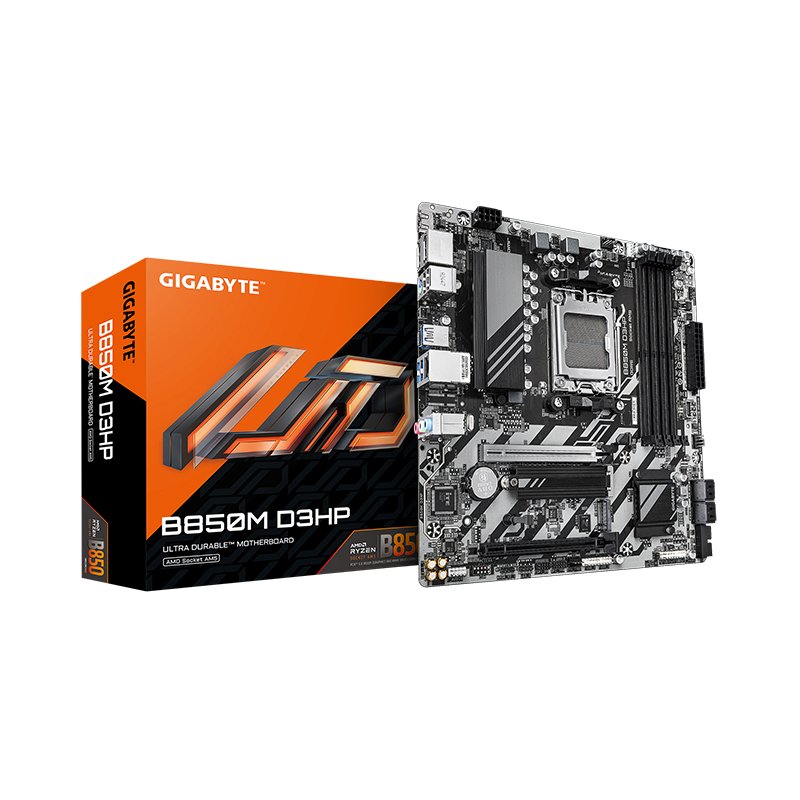

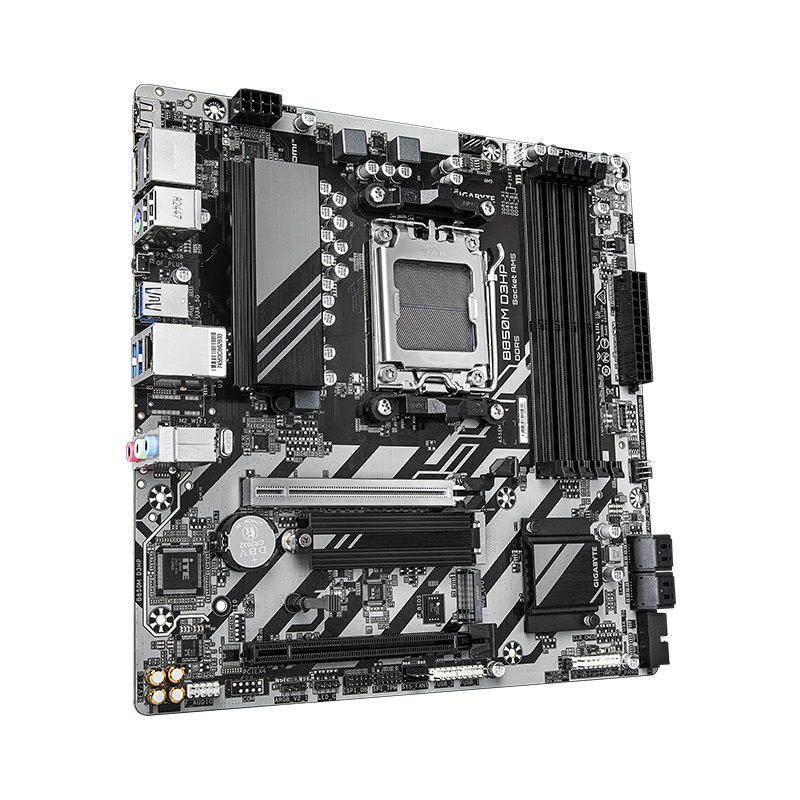

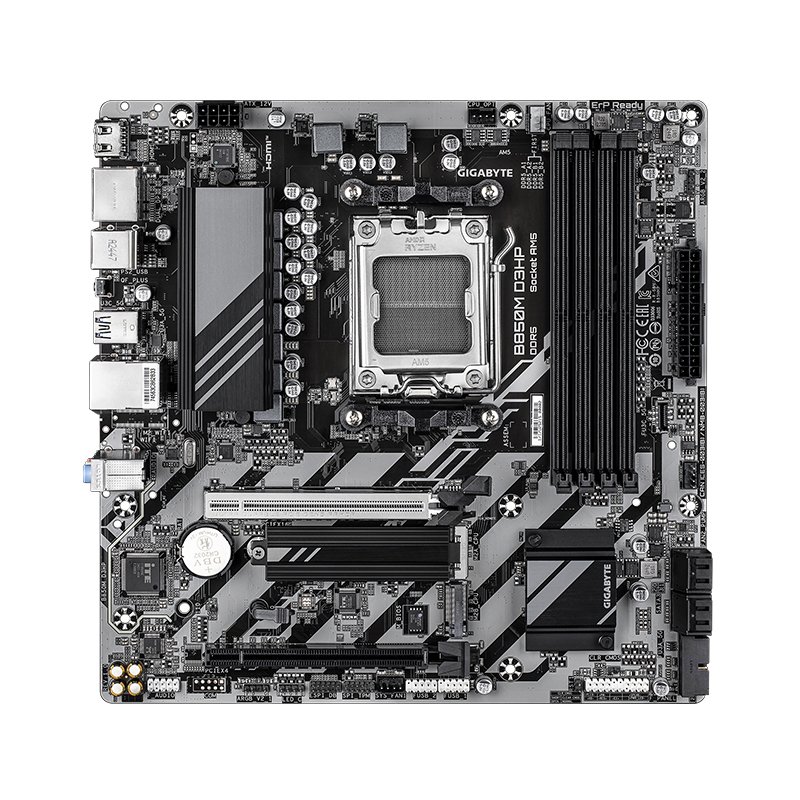

Gigabyte B850M D3HP AM5 DDR5 Micro-ATX

Name: Gigabyte B850M D3HP AM5 DDR5 Micro-ATX
SKU: 33270
Price: 39900.00 DZD
Availability: InStock

د.ج 39.900,00

Category: Motherboard AMD

Gigabyte B850M D3HP

CPU:
- AMD Socket AM5, support for:
  - AMD Ryzen™ 9000 Series Processors/
  - AMD Ryzen™ 8000 Series Processors/
  - AMD Ryzen™ 7000 Series Processors
    (Go to GIGABYTE’s website for the latest CPU support list.)

Chipset: AMD B850
Memory:
- Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Onboard Graphics:
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.
- – 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version.
  (Graphics specifications may vary depending on CPU support.)
  Support for up to triple-display at the same time

Audio:
- Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots:
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface:
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB:
- CPU:
  – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  – 1 x USB 3.2 Gen 1 port on the back panel
  – 1 x USB 2.0/1.1 port on the back panel
- Chipset:
  – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  – 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors:
- 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  1 x system fan header
  1 x system fan/water cooling pump header
  2 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x reset jumper
  1 x Clear CMOS jumper

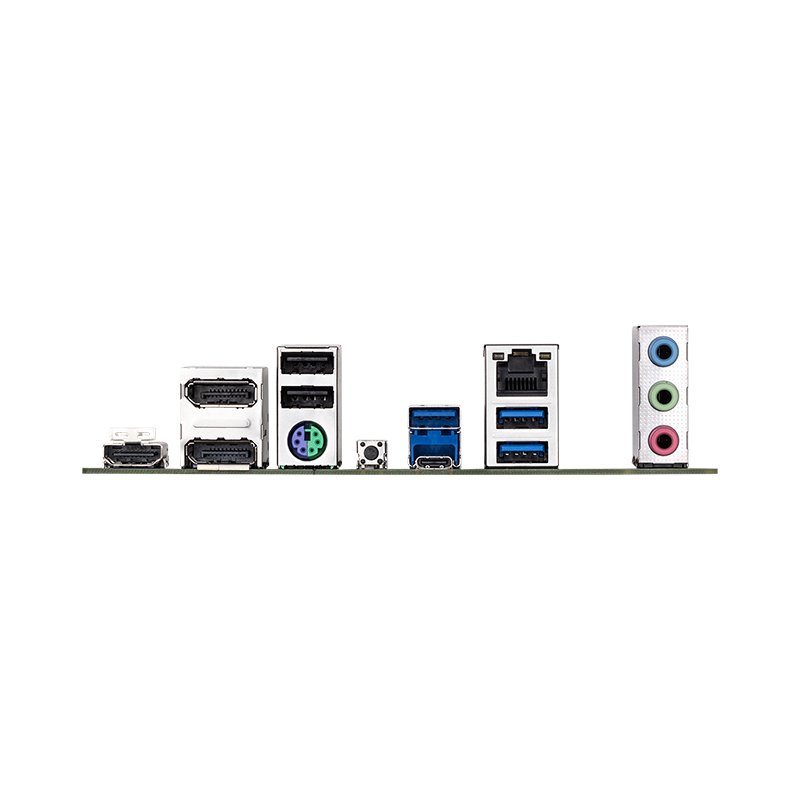

Back Panel Connectors:
- 1 x HDMI port (Note)
  2 x DisplayPorts (Note)
  1 x PS/2 keyboard/mouse port
  1 x Q-Flash Plus button
  1 x USB Type-C® port, with USB 3.2 Gen 1 support
  3 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks(Note) Actual support may vary by CPU.

I/O Controller: iTE® I/O Controller Chip
H/W Monitoring:
- Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS: 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
- Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup
