Biostar B450MHP AMD AMD4 Micro-ATX

Name: Biostar B450MHP AMD AMD4 Micro-ATX
SKU: 33072
Price: 16500.00 DZD
Availability: InStock

د.ج 16.500,00

Biostar B450MHP

Category: Motherboard AMD

Biostar B450MHP

Specifications

MEMORYSupports Dual Channel DDR4 1866/2133/2400/2666/2933/3200+(OC)

INTEGRATED VIDEOBy CPU model

STORAGE4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

AUDIO CODECALC897

USB4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)

EXPANSION SLOTAMD Processors

INTERNAL I/O4 x SATA III 6.0Gb/s Connectors

H/W MONITORINGCPU / System Temperature Monitoring

DIMENSIONMicro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )

OS SUPPORTSupports Windows 7(64bit) / 10(64bit) / 11(64bit)

BUNDLE SOFTWAREBullGuard

ACCESSORIES2 x SATA Cable

FEATURESSupports 100% Solid capacitor


B450MHP
Chipset	AMD B450
CPU SUPPORT	Socket AM4 supports AMD A-series APU, Ryzen APU / Ryzen CPU
* Please refer to www.biostar.com.tw for CPU support list.
	2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/16/32 GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list.
	Supports DX12 Supports HDCP

* Specifications vary by CPU types	LAN	Realtek RTL8111H-VB
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
	7.1 Channels, High Definition Audio
	8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
	1 x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU) AMD Chipset 2 x PCIe 2.0 x1 Slot

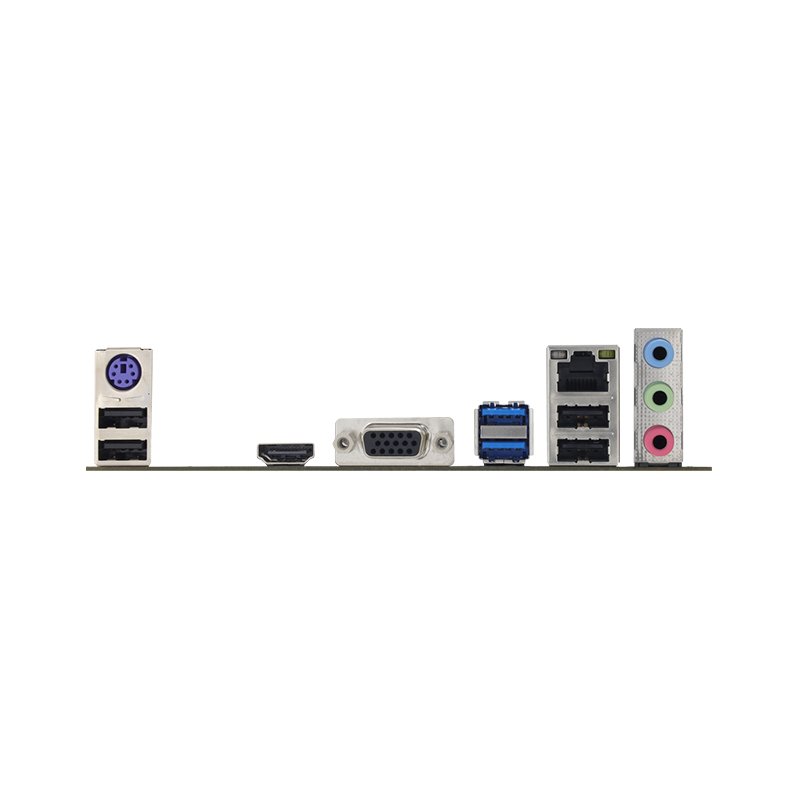

* Specifications vary by CPU types	REAR I/O	1 x PS/2 Keyboard/ Mouse
1 x VGA Port 1 x HDMI® Port 1 x LAN port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 3 x Audio Jack
	2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Serial Header
	CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring

	※BIOSTAR reserves the right to add or remove support for any OS with or without notice

	1 x I/O Shield 1 x DVD Driver 1 x Quick Guide
	BIO-FLASHER Supports BIOS Online Update
