AMD Ryzen™ 5 3400G (3.7 GHz / 4.2 GHz) with Vega 11 Graphics BOX

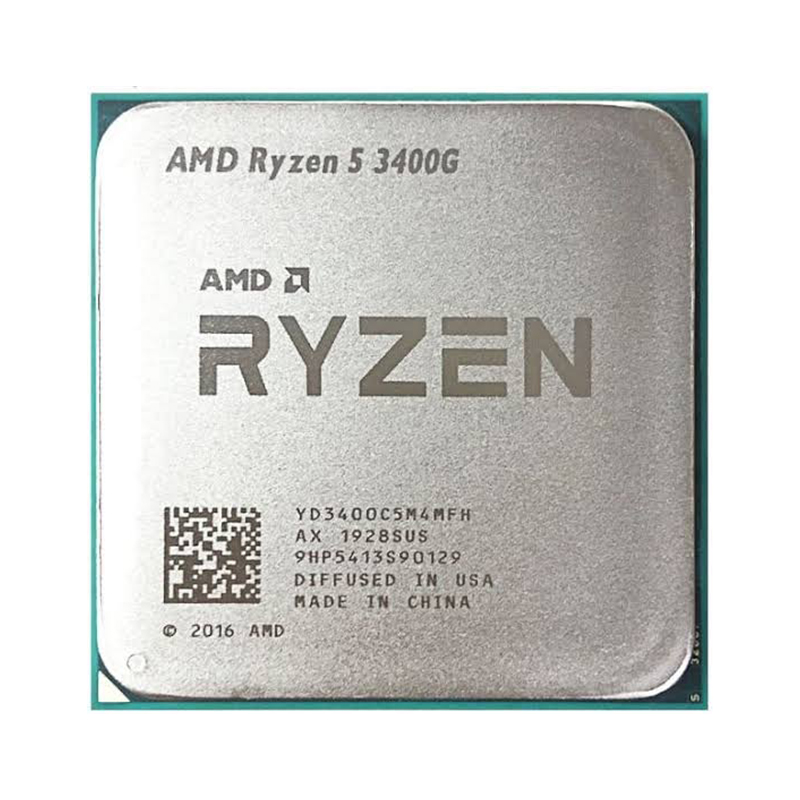

AMD Ryzen™ 5 3400G

General Specifications:

• Name: AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
• Family: Ryzen
• Series: Ryzen 3000 Series
• Form Factor: Desktops , Boxed Processor
• Market Segment: Mainstream Desktop
• Regional Availability: Global , China , NA , EMEA , APJ , LATAM
• Former Codename: Picasso
• Processor Architecture: Zen+
• # of CPU Cores: 4
• Multithreading (SMT): Yes
• # of Threads: 8
• Max. Boost Clock: Up to 4.2 GHz
• Base Clock :3.7 GHz
• L1 Cache: 384 KB
• L2 Cache: 2 MB
• L3 Cache: 4 MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: 12nm FinFET
• CPU Compute Die (CCD) Size: 210mm²
• Package Die Count: 1
• Total Transistor Count: 4.94 Billion
• Unlocked for Overclocking: Yes
• CPU Socket: AM4
• Supporting Chipsets: X570 , X470 , X370 , B450 , B350 , A320
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Max. Operating Temperature (Tjmax): 95°C
• Launch Date: 07/07/2019
• *OS Support: Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity:

• Native USB 3.2 Gen 2 (10Gbps): 0
• Native USB 3.2 Gen 1 (5Gbps): 4
• Native USB 2.0 (480Mbps): 0
• Native SATA Ports: 0
• PCI Express® Version: PCIe® 3.0
• Native PCIe® Lanes (Total/Usable): 20 , 16
• Additional Usable PCIe Lanes from Motherboard: X470  2x Gen 3, 8x Gen 2
• NVMe Support: Boot , RAID0 , RAID1 , RAID10
• System Memory Type: DDR4
• Memory Channels: 2
• Max. Memory: 64 GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  • 2x1R  DDR4-2933
  • 2x2R  DDR4-2667
  • 4x1R  DDR4-2133
  • 4x2R  DDR4-1866
• ECC SupportYes (Requires mobo support)

Graphics Capabilities:

• Graphics Model: Radeon™ RX Vega 11 Graphics
• Graphics Core Count: 11
• Total Graphics Shaders:704
• Graphics Frequency: 1400 MHz
• GPU Max. Memory: 2 GB
• WDDM Version: 2.7
• DirectX® Version: 12
• OpenGL®: 4.6
• OpenCL™: 2.2
• DisplayPort™ Version: 1.4a
• DisplayPort Extensions: Adaptive-Sync , HBR3 , HDR Metadata
• DisplayPort Max Refresh Rates (SDR): 3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz
• DisplayPort Max Refresh Rates (HDR): 3840×2160 @ 60Hz , 3440×1440 @ 60Hz , 2560×1440 @ 60Hz , 1920×1080 @ 120Hz
• HDMI® Version: 2.0
• HDCP Version Supported: 2.2
• USB Type-C® DisplayPort™ Alternate Mode: Yes
• Multi-Monitor Support: Yes
• Max Displays: 3
• AMD FreeSync™: Yes
• AMD Eyefinity Single Large Surface (SLS): No
• Wireless Display: Miracast
• Max Video Encode Bandwidth (SDR): 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
• Max Video Decode Bandwidth: 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc
