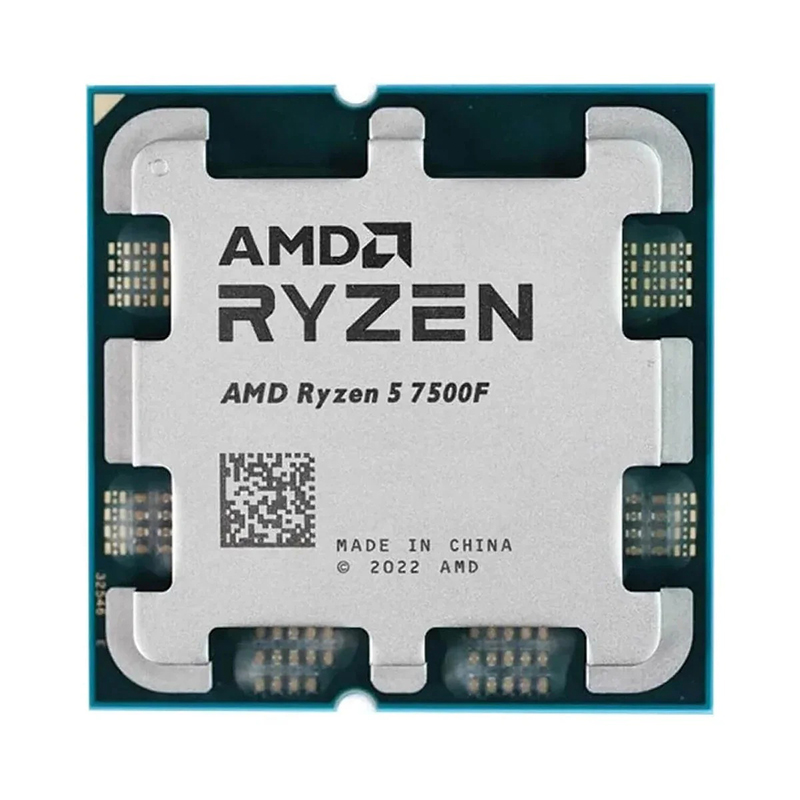

AMD Ryzen™ 5 7500F (3.7 GHz / 5 GHz) TRAY

General Specifications:

• • Name: AMD Ryzen™ 5 7500F
  • Family: Ryzen
  • Series: Ryzen 7000 Series
  • Form Factor: Desktops , Boxed Processor
  • Market Segment: Enthusiast Desktop
  • Regional Availability: Global
  • Former Code name: Raphael AM5
  • Processor Architecture: Zen 4
  • # of CPU Cores: 6
  • Multithreading (SMT): Yes
  • # of Threads: 12
  • Max. Boost Clock Up to 5 GHz
  • Base Clock 3.7 GHz
  • L1 Cache: 384 KB
  • L2 Cache: 6 MB
  • L3 Cache: 32 MB
  • Default TDP: 65W
  • Processor Technology for CPU Cores: TSMC 5nm FinFET
  • Processor Technology for I/O Die: TSMC 6nm FinFET
  • CPU Compute Die (CCD) Size: 71mm²
  • I/O Die (IOD) Size: 122mm²
  • Package Die Count: 2
  • Unlocked for Overclocking Yes
  • AMD EXPO™ Memory Overclocking Technology: Yes
  • Precision Boost Overdrive: Yes
  • Curve Optimizer Voltage Offsets: Yes
  • AMD Ryzen™ Master Support: Yes
  • CPU Socket: AM5
  • Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
  • CPU Boost Technology: Precision Boost 2
  • Instruction Set: x86-64
  • Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
  • Thermal Solution (PIB): AMD Wraith Stealth
  • Thermal Solution (MPK): AMD Wraith Stealth
  • Max. Operating Temperature (Tjmax): 95°C
  • Launch Date: 07/22/2023
  • *OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
• Connectivity:
  • Native USB 3.2 Gen 2 (10Gbps): 4
  • Native USB 3.2 Gen 1 (5Gbps): 0
  • Native USB 2.0 (480Mbps): 1
  • Native SATA Ports: 0
  • PCI Express® Version: PCIe® 5.0
  • Native PCIe® Lanes (Total/Usable): 28 , 24
  • Additional Usable PCIe Lanes from Motherboard
  • X670E
  • 12x Gen4
  • X670
  • 12x Gen4
  • B650E
  • 8x Gen4
  • B650
  • 8x Gen4
  • A620
  • 4x Gen3
  • NVMe Support: Boot , RAID0 , RAID1 , RAID10
  • System Memory Type: DDR5
  • Memory Channels: 2
  • Max. Memory: 128 GB
  • System Memory Subtype: UDIMM
  • Max Memory Speed
  • 2x1R
  • DDR5-5200
  • 2x2R
  • DDR5-5200
  • 4x1R
  • DDR5-3600
  • 4x2R
  • DDR5-3600
  • ECC Support: Yes (Requires mobo support)
• Graphics Capabilities:
  • Graphics ModelDiscrete Graphics Card Required
