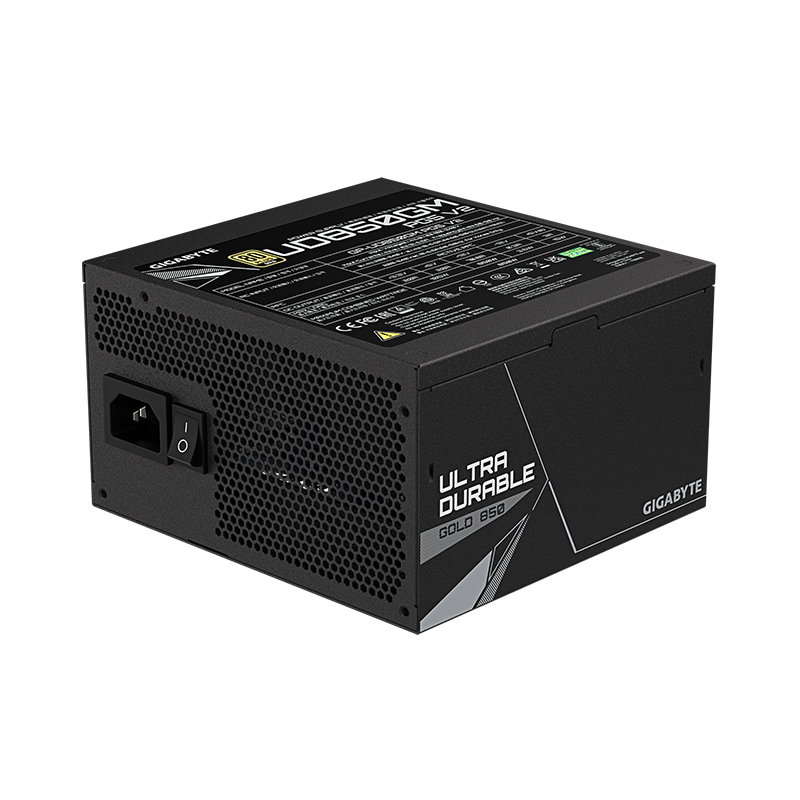

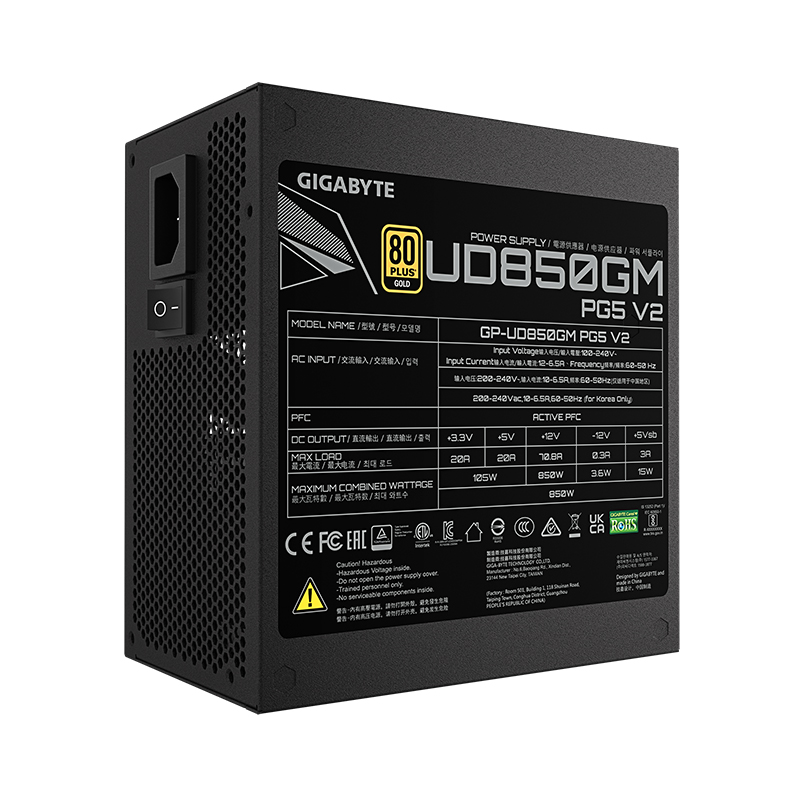

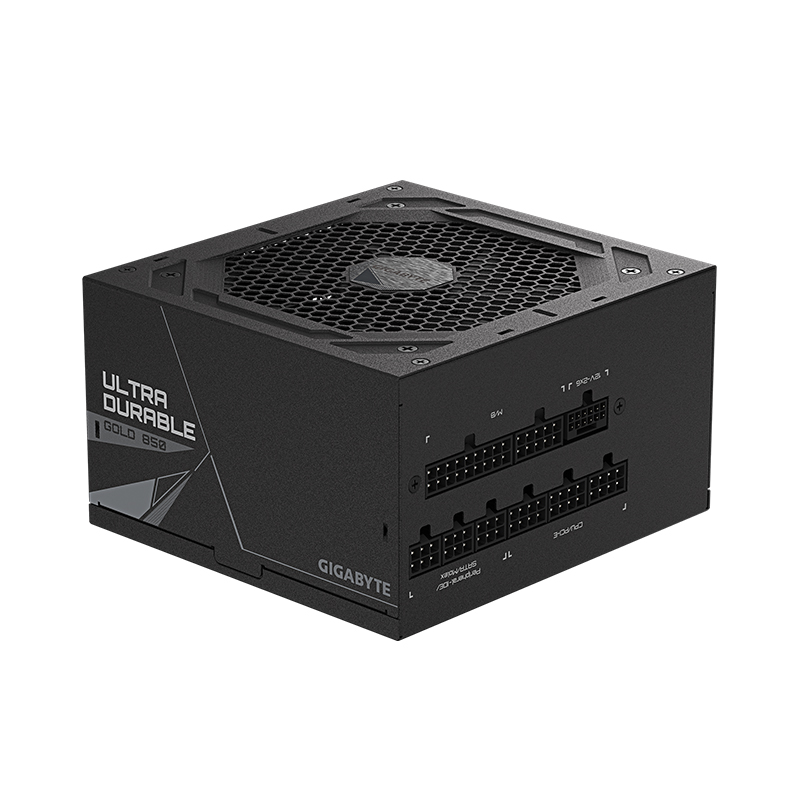

Gigabyte UD850GM PG5 V2 850W 80+ Gold PCIe Gen 5.1 ATX 3.1 Fully Modular

Gigabyte UD850GM PG5 V2

• Model: GP-UD850GM PG5 V2
• Type: Intel Form Factor ATX 12V v3.1
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz
• Output Capacity: 850W
• Dimensions: 150 x 140 x 86 mm

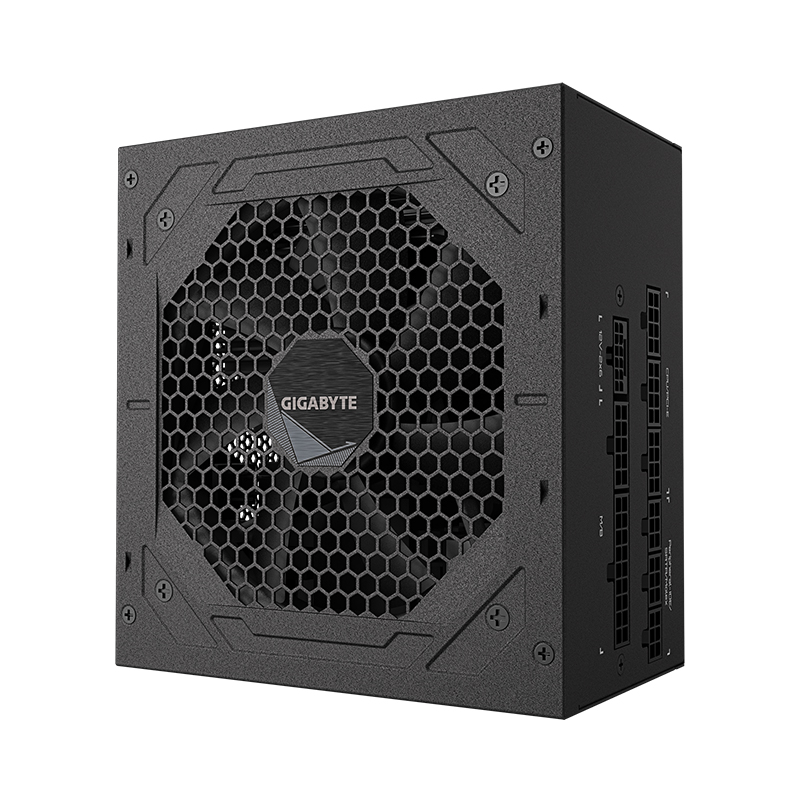

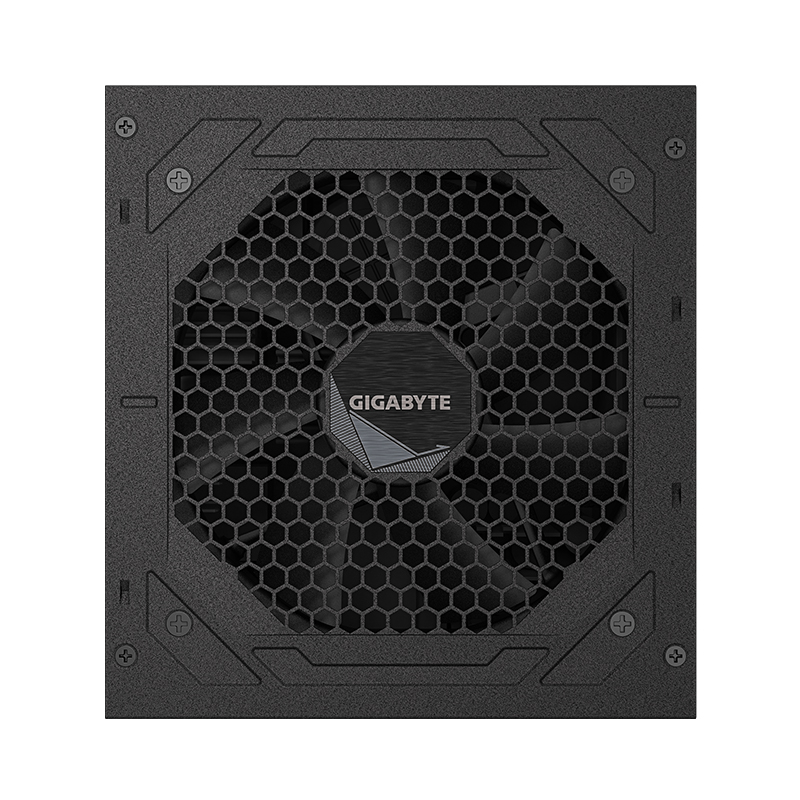

• Fan Type: 120mm Hydraulic Bearing(HYB) Fan
• 80 PLUS: Gold
• Efficiency: 90% at typical load
• MTBF: >100,000 hours
• Protections: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• Cable Type: Embossed, All black

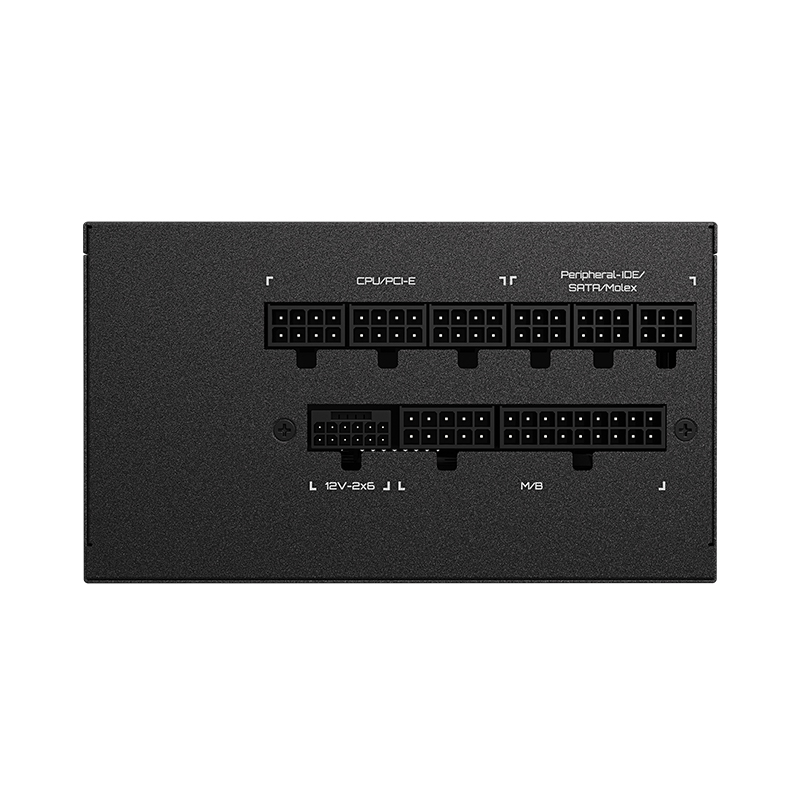

• Connectors:
  • ATX/MB 20+4 Pin x 1 : 610mm*1
  • CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
  • PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  • PCI-e 12+4 Pin x 1:700mm*1
  • SATA x 8 : 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
