Gaming PC BLACK FLASH: i5-14400F – Rx 6700XT 12GB DDR5

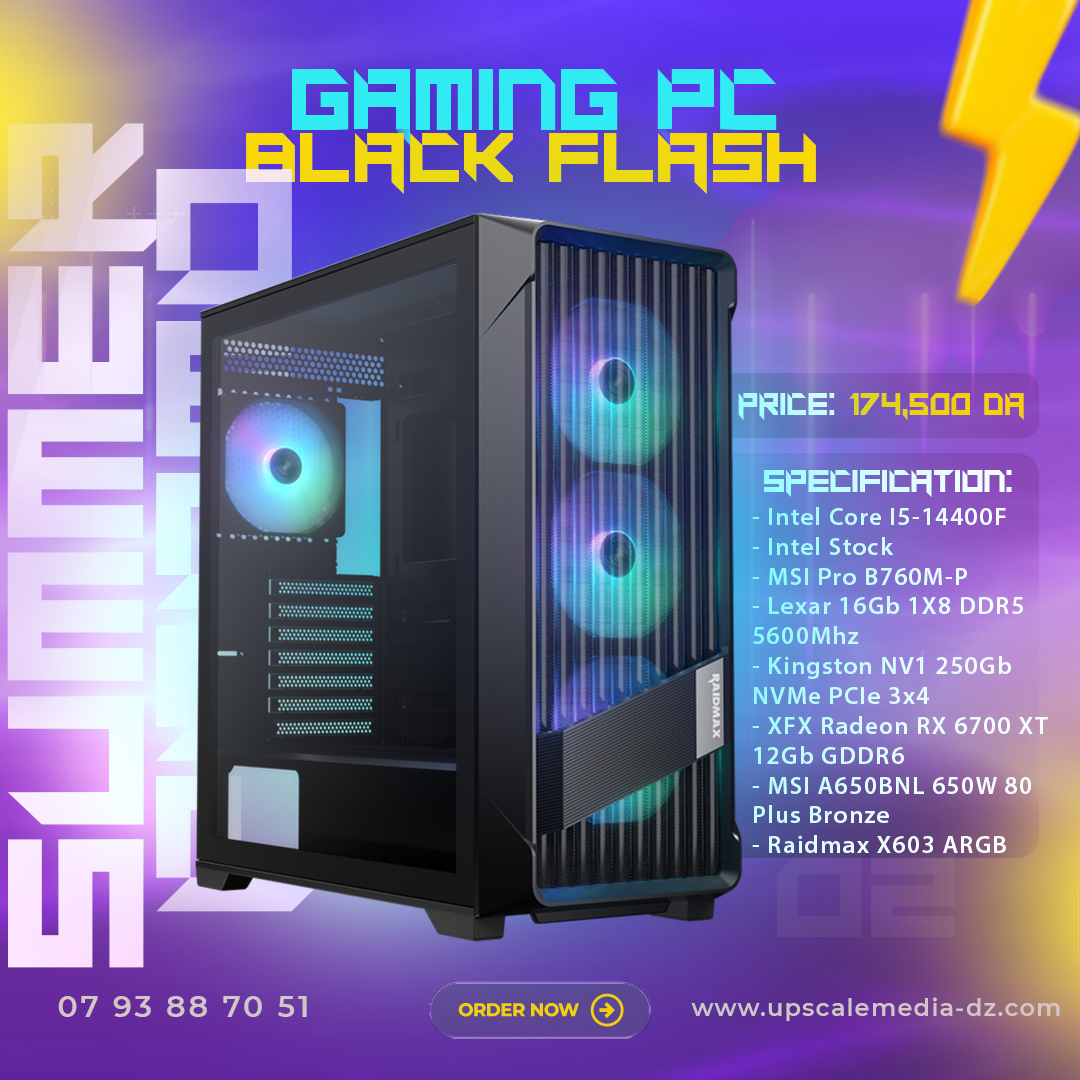

Gaming PC BLACK FLASH

💻 Complete System Overview

🔧 Hardware Specifications

⚙️ Component Breakdown & Analysis

✅ CPU – Intel Core i5-14400F

• Cores/Threads: 6 P-cores + 4 E-cores = 10 cores, 16 threads

• Base/Turbo Clock: ~2.5 GHz / up to 4.7 GHz

• No Integrated GPU – relies on dedicated GPU

• Performance: Strong multitasking and gaming CPU for mid- to high-end use

• Cooling: Intel stock cooler is adequate for non-overclocked use

✅ Motherboard – MSI Pro B760M-P DDR5

• Chipset: Intel B760 – supports 13th & 14th gen CPUs

• Memory Support: Up to 128GB DDR5

• Expansion: PCIe Gen 4 GPU slot, M.2 SSD slot(s), USB 3.2

• Form Factor: Micro-ATX – compact, but limits some expansion vs. ATX boards

✅ RAM – Lexar 16GB DDR5 5600 MHz (1x16GB)

• Configuration: Single-channel

• Impact: Slight performance bottleneck in games and apps that benefit from memory bandwidth

• ✅ Upgrade Recommended: Add a second 16GB stick for dual-channel (32GB total)

✅ Storage – 256GB NVMe SSD

• Type: PCIe NVMe SSD

• Performance: Fast boot/load times

• Limitations: Low capacity for modern games, creative software, or dual OS setups

• ✅ Upgrade Recommended: Add a 1TB NVMe or SATA SSD for games/files

✅ GPU – XFX Radeon RX 6700 XT 12GB

• VRAM: 12GB GDDR6

• Performance:

  • 1080p: Excellent (Ultra in nearly all modern games)

  • 1440p: Very strong (High/Ultra with 60+ FPS)

  • 4K: Playable in some titles with reduced settings

• Ray Tracing: Supported, but AMD RT performance is behind NVIDIA

• Strengths: Beats RTX 3060, comparable to RTX 3070 in rasterization

• Software: Radeon Adrenalin for tuning, drivers, and recording

✅ PSU – MSI A650BNL 650W (80+ Bronze)

• Wattage: 650W

• Efficiency: 80+ Bronze

• Compatibility: Sufficient for the RX 6700 XT and i5-14400F combo

• Form: Non-modular – more cable clutter, but functional

✅ Case – Raidmax X603

• Form Factor: Mid-tower ATX with tempered glass panel

• Included Cooling: 4x ARGB fans – solid airflow and RGB aesthetics

• Fan Support: Front, top, rear mounts supported

• Other Features: PSU shroud, cable routing, RGB lighting controls

📈 Performance Summary

🧰 Upgrade Recommendations

✅ Build Summary

This is a powerful mid-to-high-end gaming and productivity system, with strong performance in 1080p and 1440p gaming, backed by a modern CPU and a high-value GPU in the RX 6700 XT. Once you upgrade to dual-channel RAM and expand storage, it becomes a fully balanced and future-ready system for nearly all non-professional workloads.
