COLORFUL CVN B550M GAMING FROZEN V15 AMD AM4
د.ج 28.500,00
COLORFUL CVN B550M GAMING FROZEN V15
Feature Highlights:
CVN series exclusive customized white motherboard
CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation
Provide 2 M.2 SSD slots
Provide 1 USB 3.2 Gen 1 Type-C and 1 USB 3.2 Gen 1 Type-A high-speed rear interface
Equipped with Realtek 2.5G fast wired network card
Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
Six major protective technologies ensure more stable product operation
Strict testing of 200 processes with guaranteed quality
Comprehensive upgrade of PCB atomization process
COLORFUL CVN B550M GAMING FROZEN V15
| Model | CVN B550M GAMING FROZEN V15 |
|---|---|
| Product Series | CVN series |
| Chipset | AMD B550 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR4 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory) – Support DDR4-4000 (OC)/3800 (OC)/3600 (OC)/3200/2933/2666/2400MHz memory – Support Extreme Memory Profile (XMP) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices – M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel) – M.2_2 slot: supports 2280 M.2 SSD (PCIe 3.0 x4, PCH channel) |

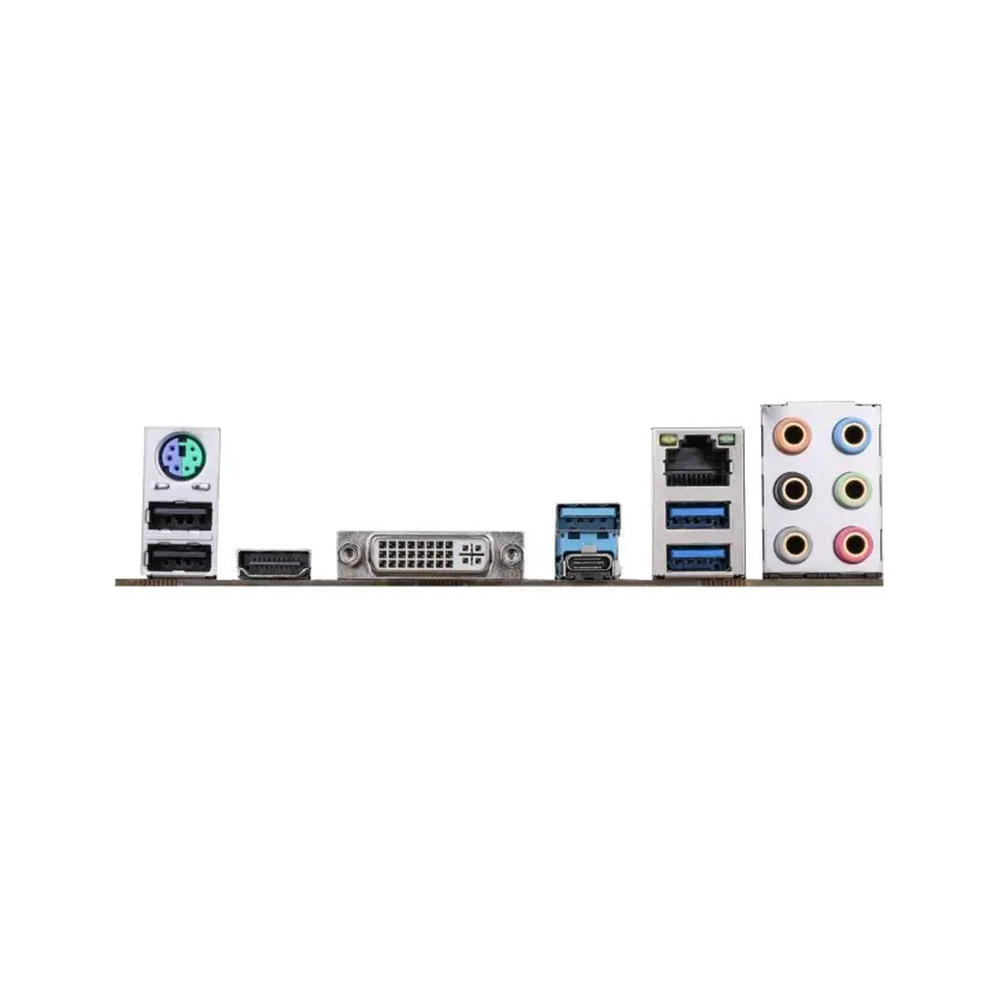

| Board I/O | Rear I/O : -2×USB 2.0 interfaces -3×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C interface -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×DVI interface -1×PS/2 interface -1×2.5G network interface -6×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×USB live control jumper |
| Expansion Slots | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot 1×PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5Gbit LAN |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 245 x 245 mm |
Brand
RYZEN
