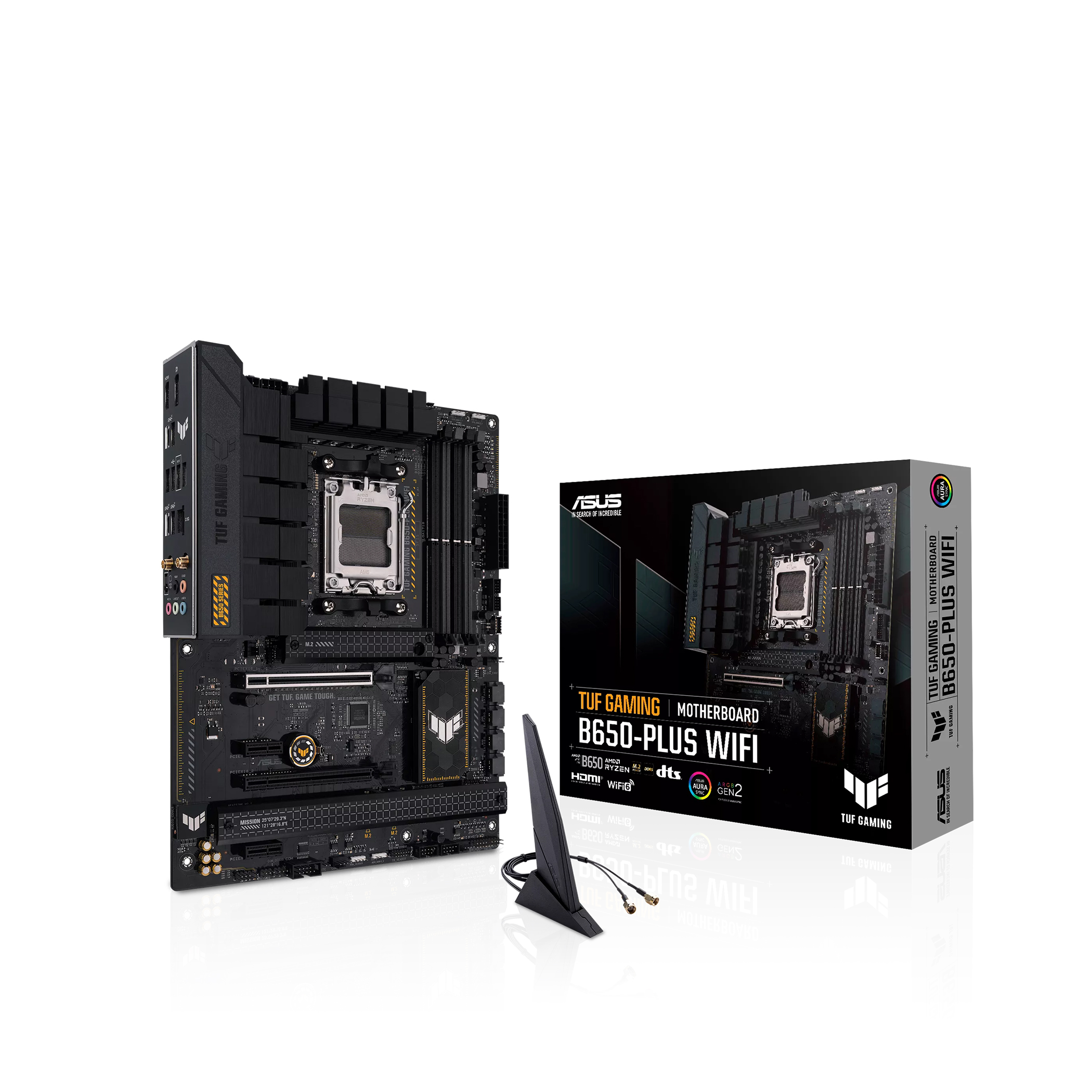

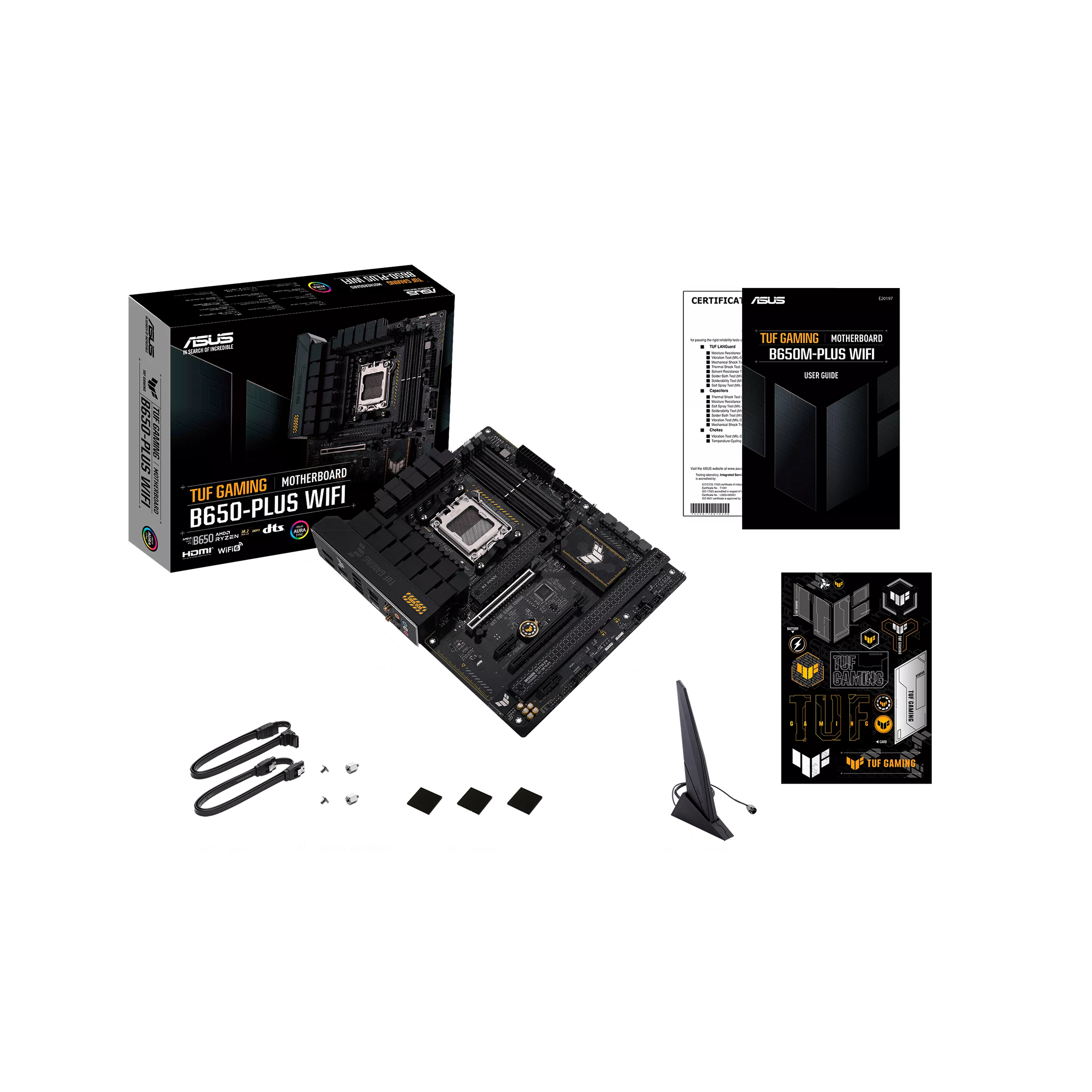

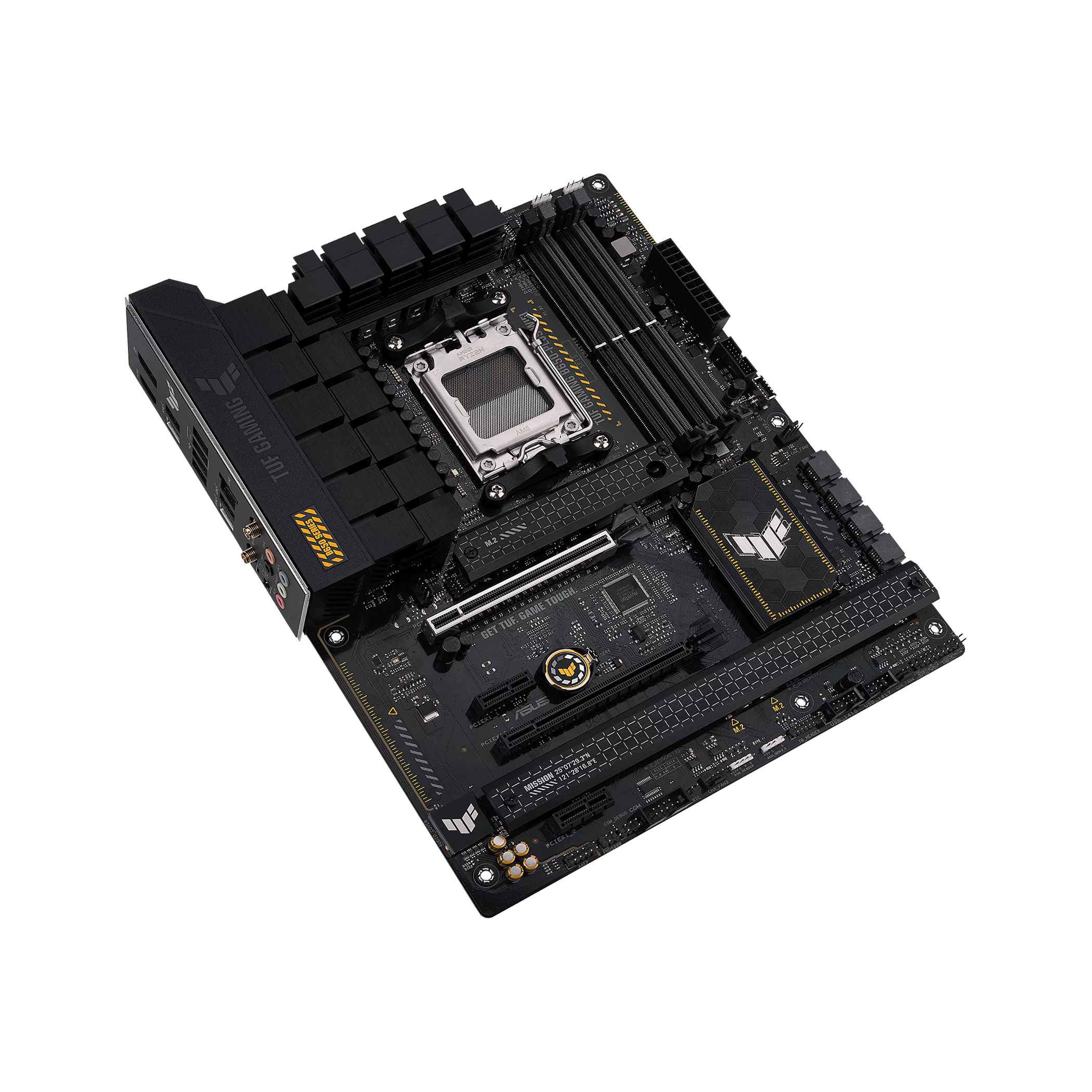

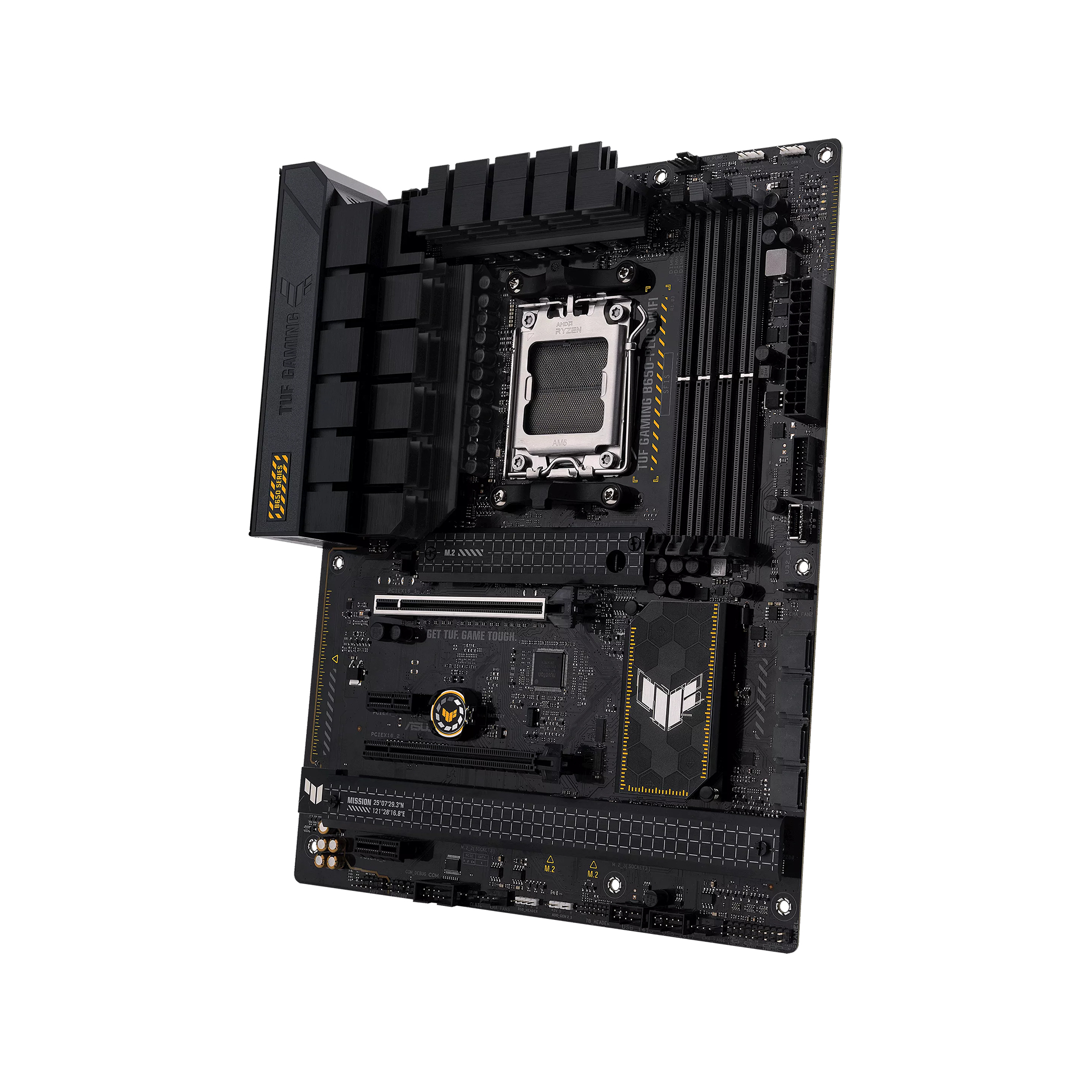

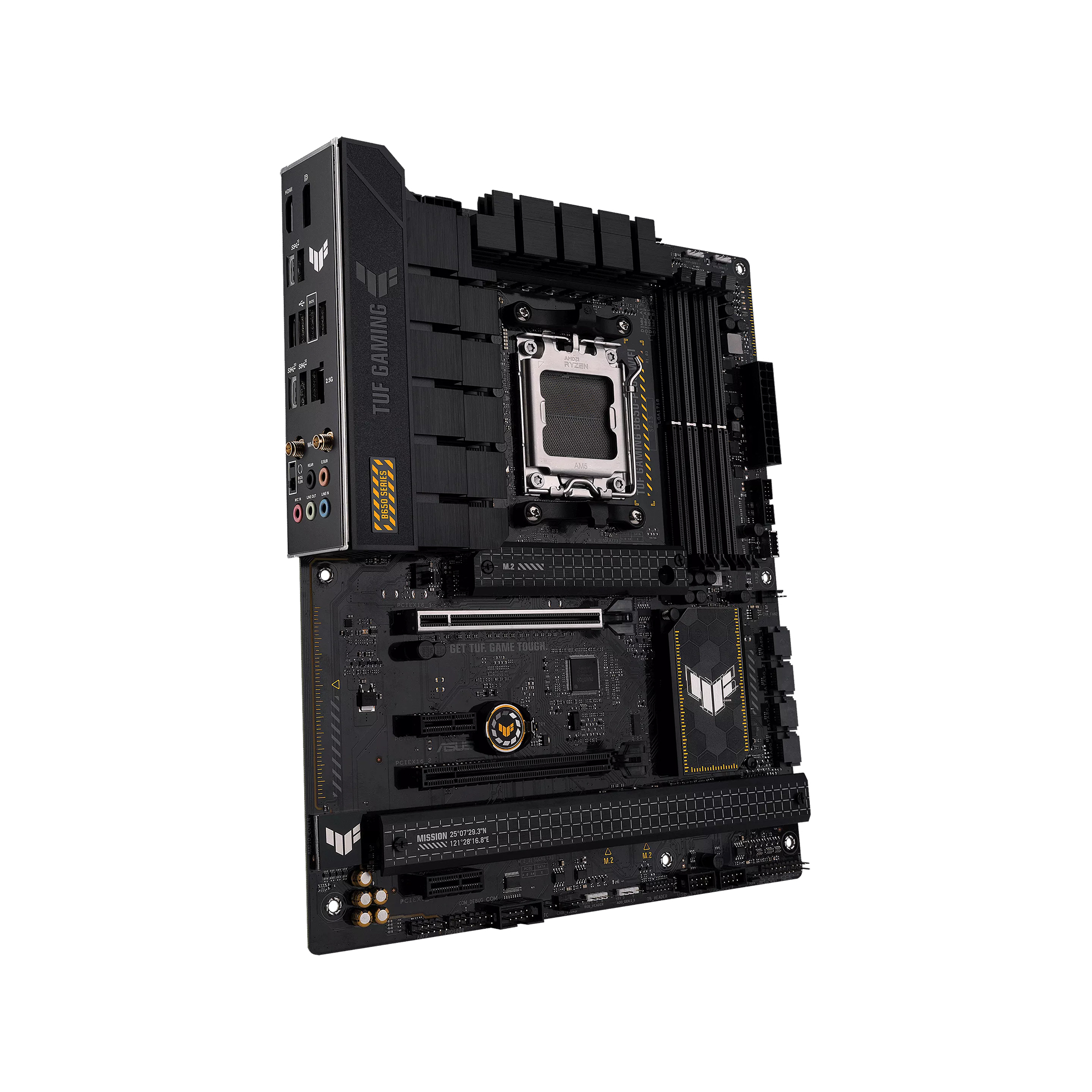

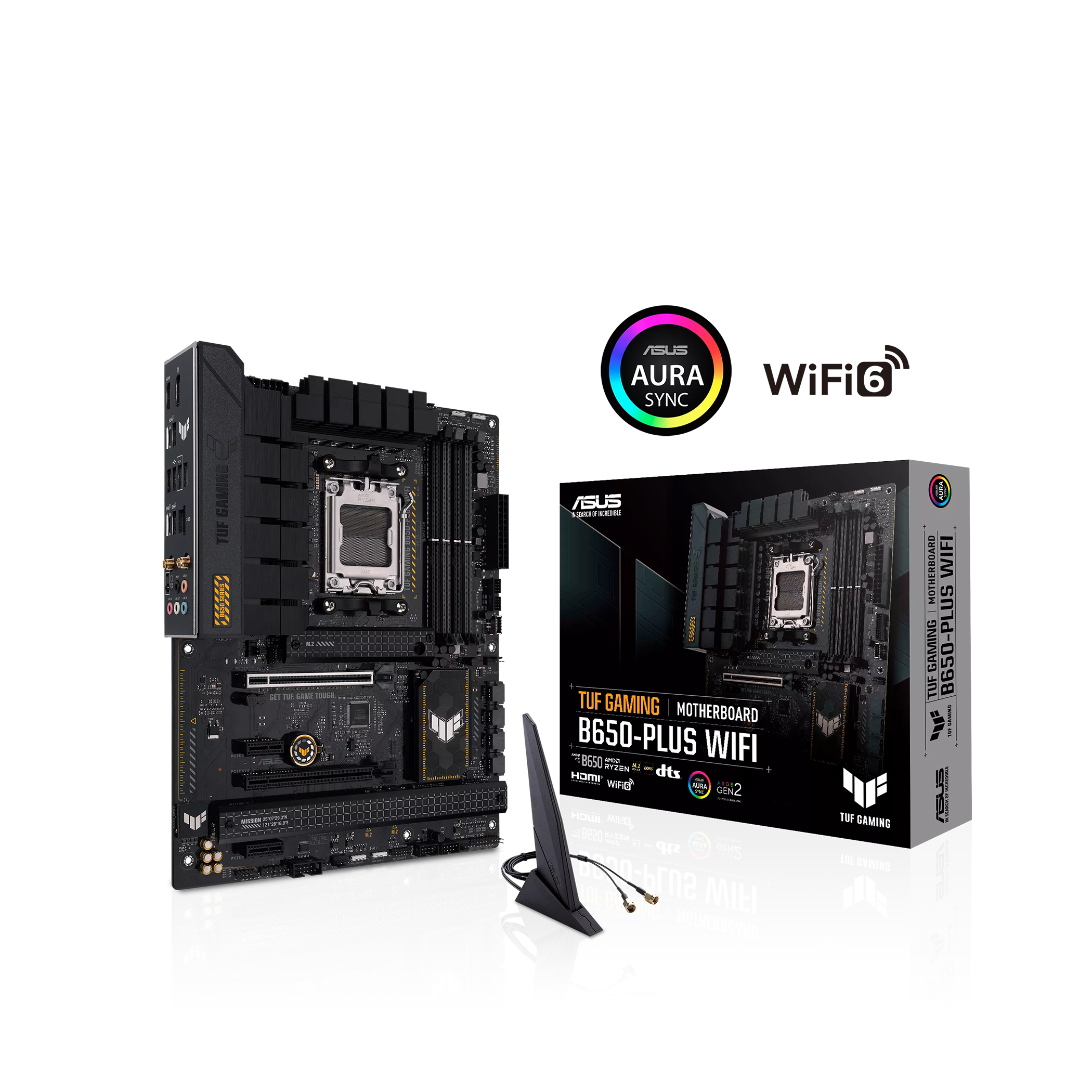

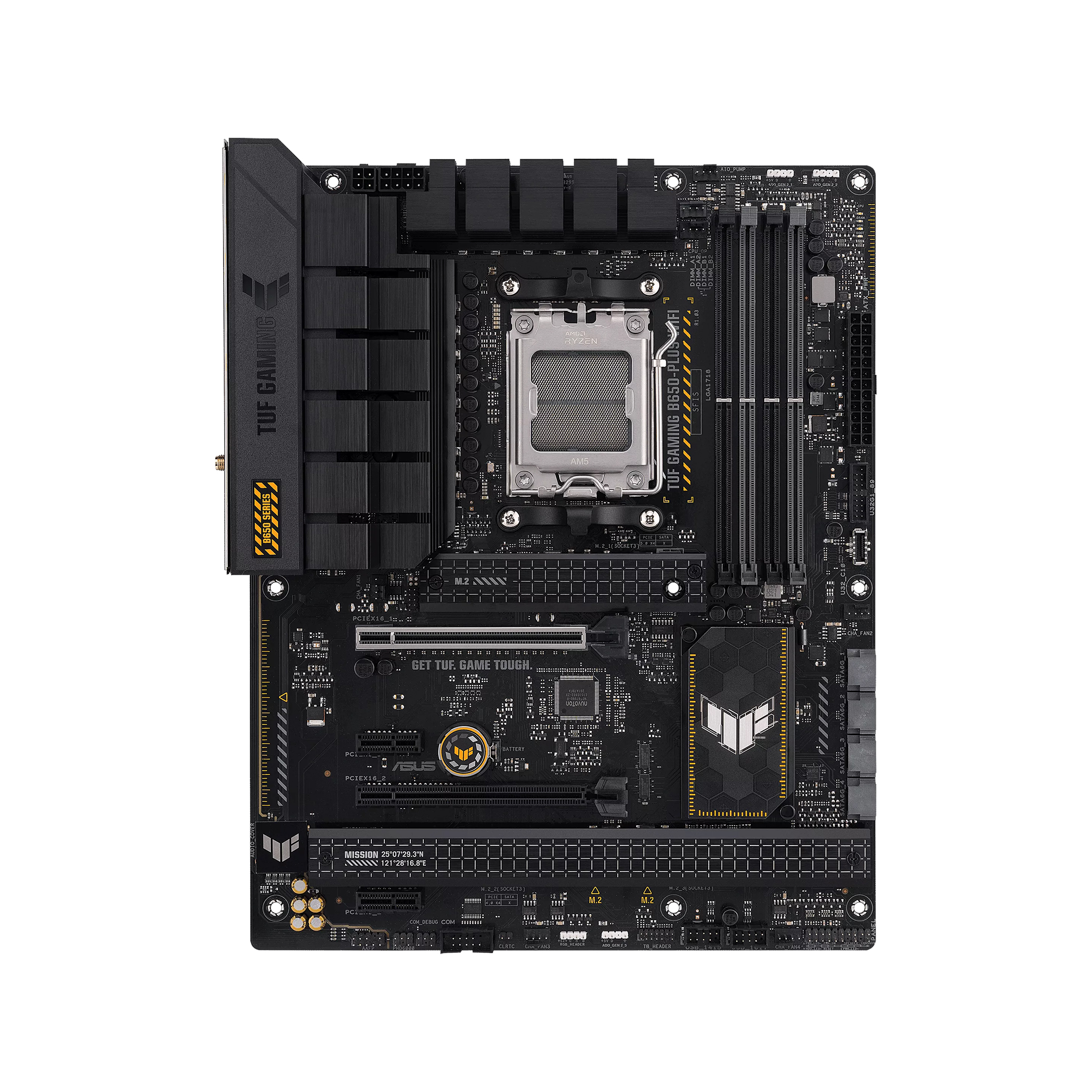

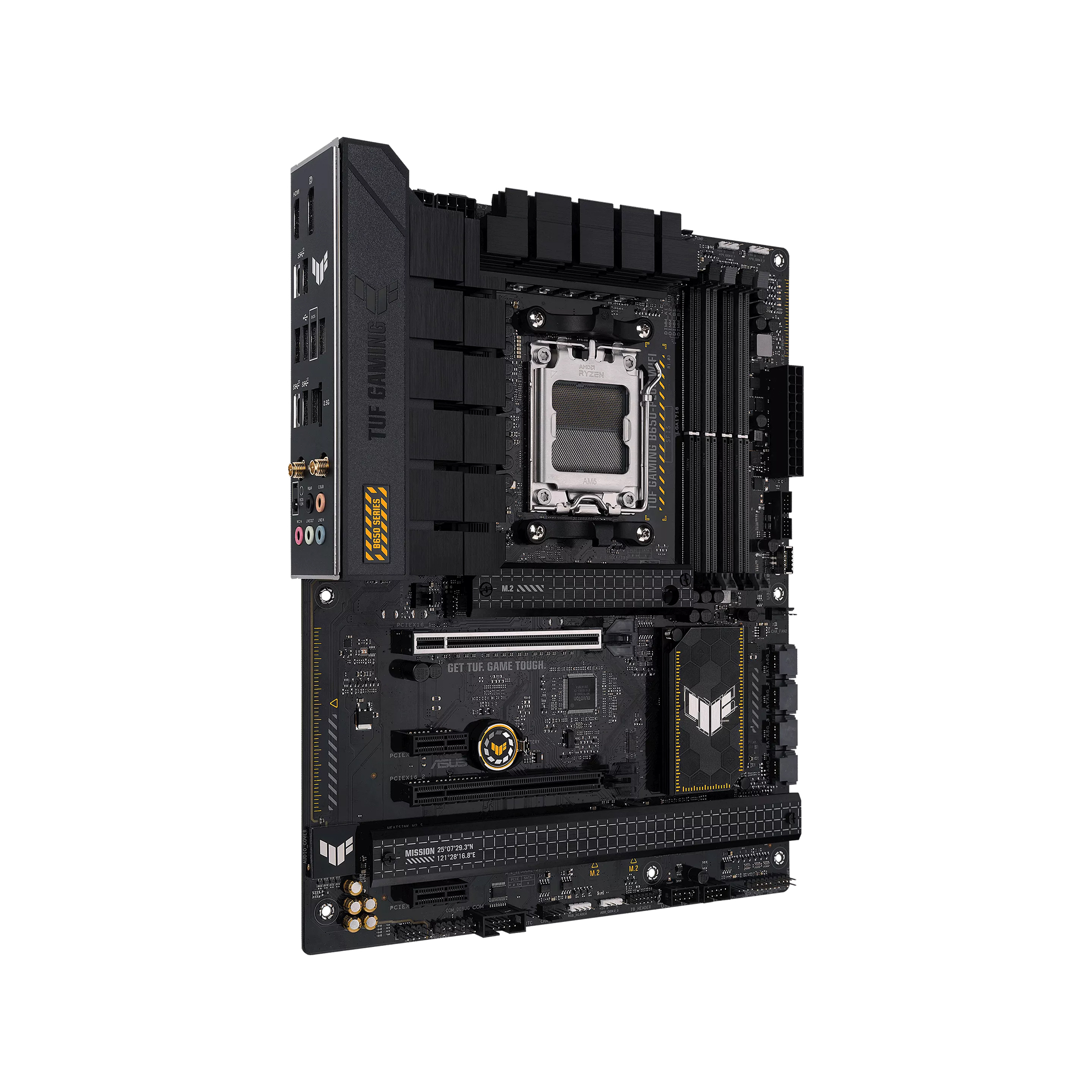

Asus TUF Gaming B650-PLUS WiFi 6 ATX AMD AM5

Name: Asus TUF Gaming B650-PLUS WiFi 6 ATX AMD AM5
SKU: 13684
Availability: InStock

د.ج 58.000,00

Asus TUF Gaming B650-PLUS WiFi 6

ASUS TUF GAMING B650-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Category: MOTHERBOARD

Asus TUF Gaming B650-PLUS WiFi 6

Model: TUF GAMING B650-PLUS WIFI
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset: AMD B650
Memory:
- 4 x DIMM, Max. 256GB, DDR5
- 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports AMD EXTended Profiles for Overclocking (EXPO™)
- OptiMem II

* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics
- 1 x DisplayPort*
- 1 x HDMI® port**
- * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- ** Supports 4K@60Hz as specified in HDMI 2.1.
- *** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 4.0/3.0 x16 slot(s)
- AMD Ryzen™ 8000 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD B650 Chipset
- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
- 2 x PCIe 4.0/3.0 x1 slots

* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.

Storage:
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
- AMD B650 Chipset
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)***
- 4 x SATA 6Gb/s ports
- *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
- ** Specifications vary by CPU types.
- *** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_is populated.

Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth:
- Wi-Fi 6
- 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
USB:
- Rear USB (Total 8 ports):
  - 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
  - 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
  - 4 x USB 2.0 port(s) (4 x Type-A)
- Front USB (Total 7 ports)
  - 1 x USB 3.2Gen 1 connector (supports USB Type-C®)
  - 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  - 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features:
  - Audio Shielding
  - Power pre-regulator reduces power input noise to ensure consistent performance
  - Premium audio capacitors
  - Dedicated audio PCB layers
  - Audio cover
  - Unique de-pop circuit
  - * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  - ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

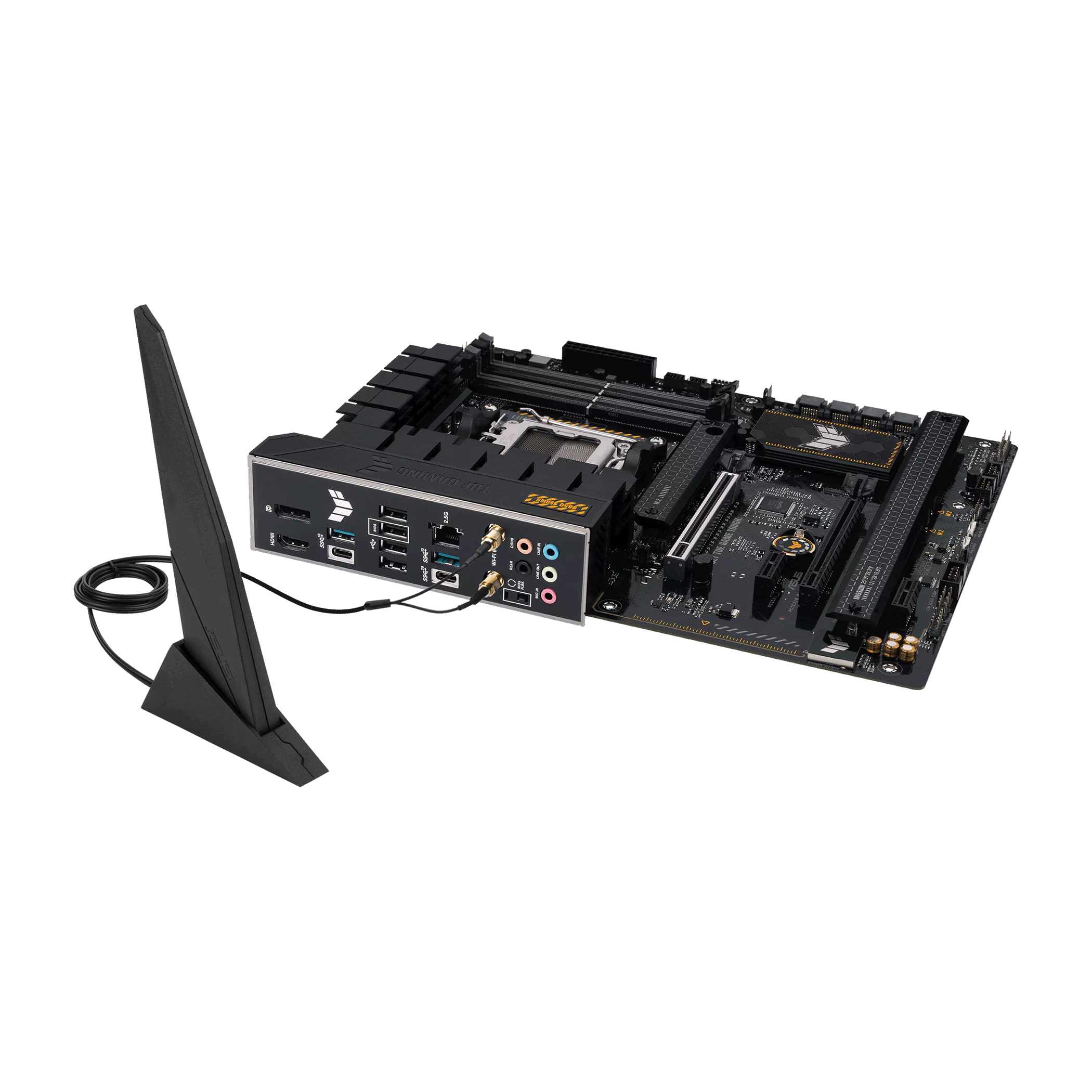

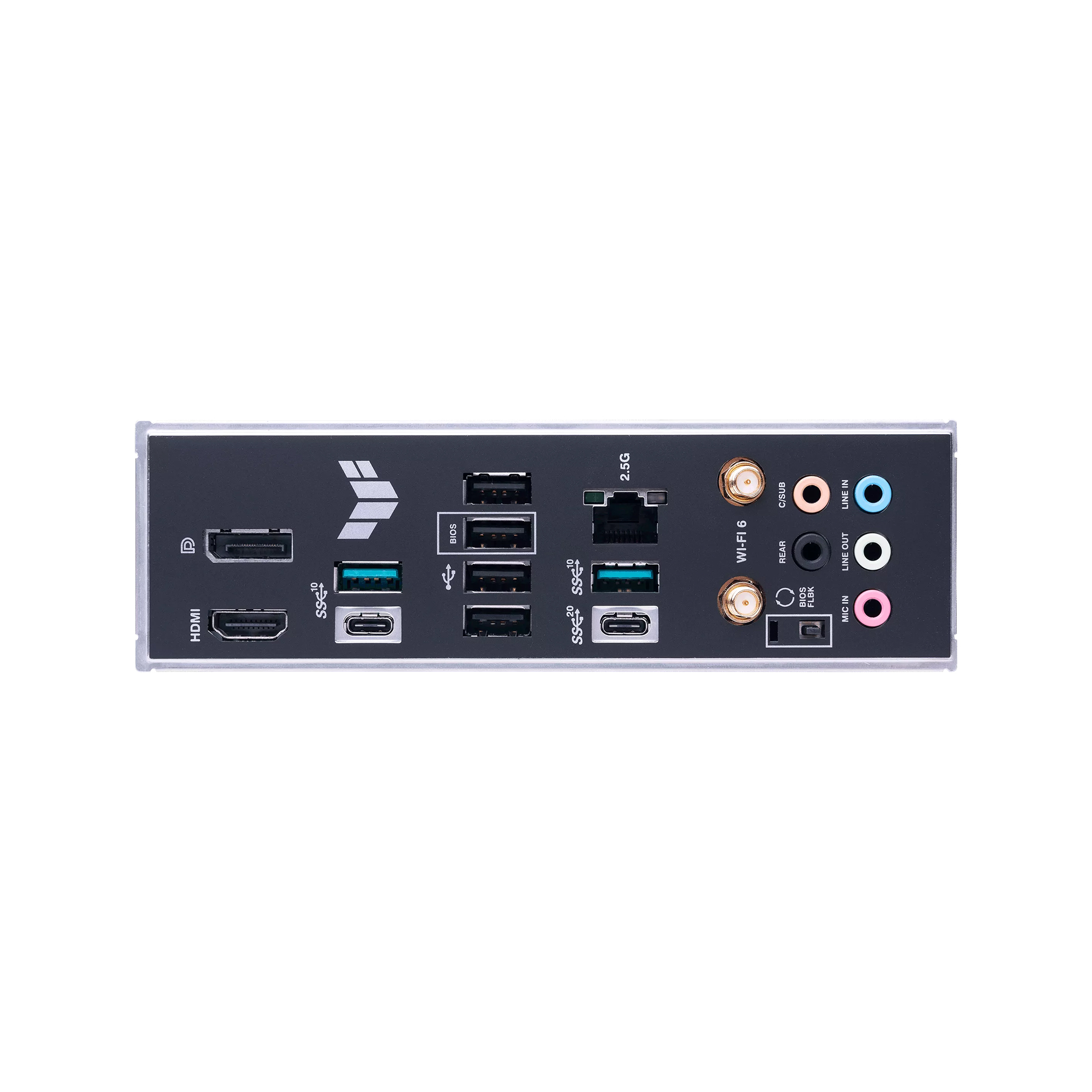

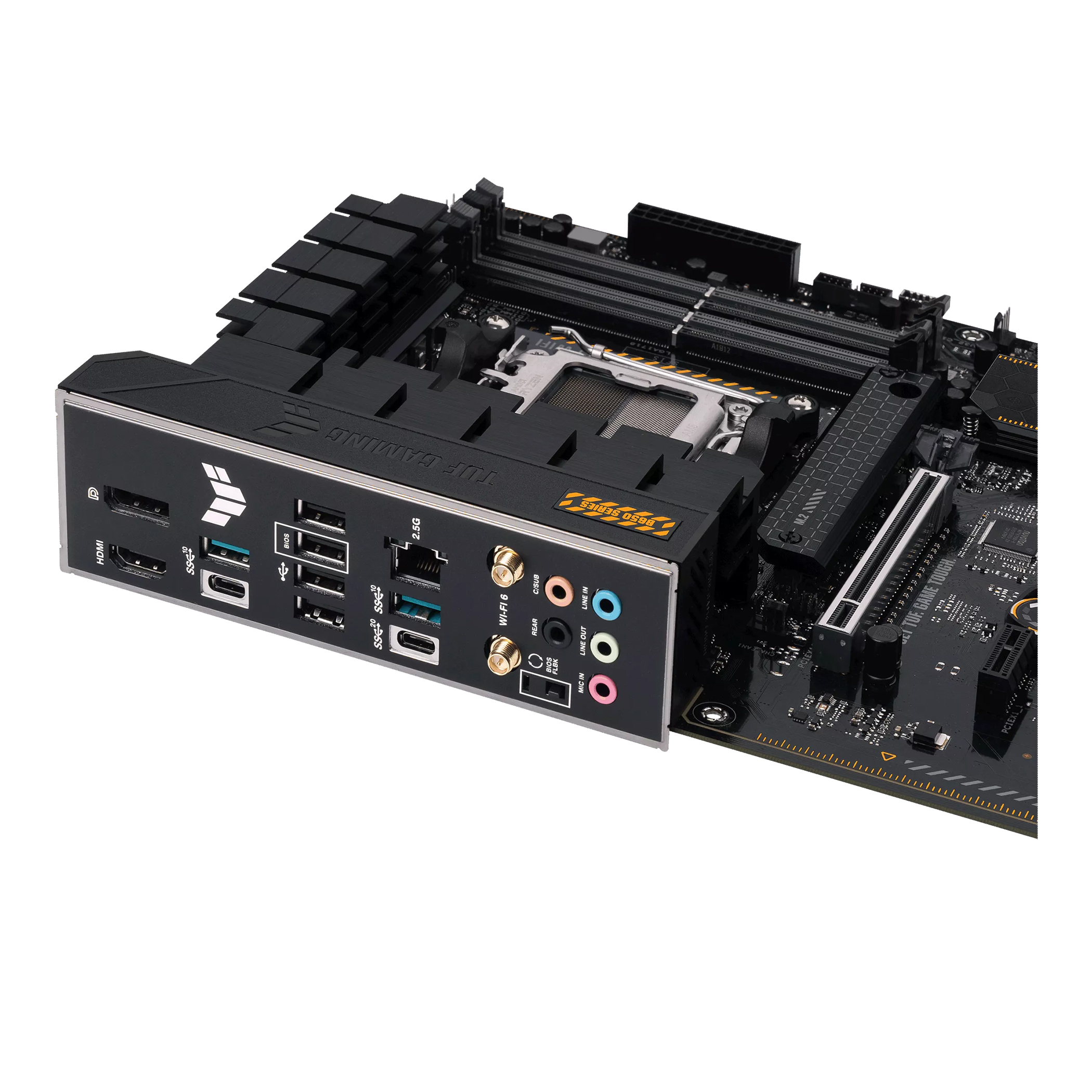

Back Panel I/O Ports:
- 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 2.0 port(s) (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
Internal I/O Connectors:
- Fan and Cooling related:
  - 1 x 4-pin CPU Fan header(s)
  - 1 x 4-pin CPU OPT Fan header(s)
  - 1 x 4-pin AIO Pump header(s)
  - 4 x 4-pin Chassis Fan header(s)
- Power related:
  - 1 x 24-pin Main Power connector
  - 1 x 8-pin +12V Power connector
  - 1 x 4-pin +12V Power connector
- Storage related:
  - 3 x M.2 slots (Key M)
  - 4 x SATA 6Gb/s ports
- USB:
  - 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
  - 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
  - 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
- Miscellaneous:
  - 3 x Addressable Gen 2 header(s)
  - 1 x Aura RGB header(s)
  - 1 x Clear CMOS header
  - 1 x COM Port header
  - 1 x Front Panel Audio header (AAFP)
  - 20-3 pin System Panel header with Chassis intrude function
  - 1 x Thunderbolt™ (USB4®) header
Special Features:
- ASUS TUF PROTECTION:
  - DIGI+ VRM (- Digital power design with DrMOS)
  - Enhanced DRAM Overcurrent Protection
  - ESD Guards
  - TUF LANGuard
  - Overvoltage Protection
  - SafeSlot Core+
  - Stainless-Steel Back I/O
- ASUS Q-Design:
  - M.2 Q-Latch
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot
- ASUS Thermal Solution:
  - M.2 heatsink
  - VRM heatsink design
- ASUS EZ DIY:
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - ProCool
  - Pre-mounted I/O shield
  - SafeDIMM
- Aura Sync:
  - Aura RGB header(s)
  - Addressable Gen 2 header(s)
Software Features:
- ASUS Exclusive Software
- Armoury Crate
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4
  - Power Saving
  - Two-Way AI Noise Cancellation
- AI Suite 3
  - TurboV EVO
  - DIGI+ VRM
  - PC Cleaner
- TUF GAMING CPU-Z
- DTS Audio Processing
- MyAsus
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
  - ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Operating System:
- Windows® 11
- Windows® 10 64-bit
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
