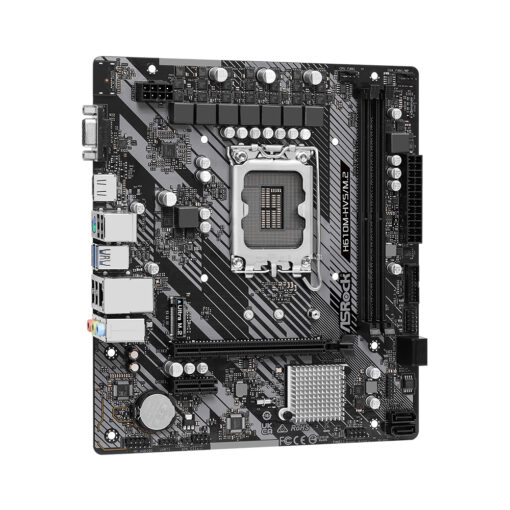

Asrock H610M-HVS/M.2 R2.0 DDR4 14th, 13th & 12th Gen

Asrock H610M-HVS/M.2 R2.0

• Unique Feature
  ASRock Super Alloy
  – Premium Power Choke
  – Sapphire Black PCB
  – High Density Glass Fabric PCB
  ASRock Ultra M.2 (PCIe Gen3x4)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  – Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
  – 6+1+1 Power Phase design
  – Supports Intel^® Hybrid Technology
  – Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  – Intel^® H610
• Memory
  – Dual Channel DDR4 Memory Technology
  – 2 x DDR4 DIMM Slots
  – Supports DDR4 non-ECC, un-buffered memory up to 3200
  – Supports ECC UDIMM memory modules (operate in non-ECC mode)
  – Max. capacity of system memory: 64GB
  – Supports Intel^® Extreme Memory Profile (XMP) 2.0
• BIOS
  – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  – ACPI 6.0 Compliant wake up events
  – SMBIOS 2.7 Support
  – CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
• Graphics
  – Intel^® X^e Graphics Architecture (Gen 12)
  – Dual graphics output: support HDMI and D-Sub ports by independent display controllers
  – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
  – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

  * Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  – Supports Surge Protection
• LAN
  – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – 1 x Realtek RTL8111H
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Slots
  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
  Chipset:
  – 1 x PCIe 3.0 x1 Slot (PCIE1)

  *Supports NVMe SSD as boot disks
• Storage
  Chipset:
  – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
  ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x D-Sub Port
  – 1 x HDMI Port
  – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  – 4 x USB 2.0 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Motherboard Utility (A-Tuning)
  UEFI
  – ASRock EZ Mode
  – ASRock Full HD UEFI
  – ASRock My Favorites in UEFI
  – ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version)
• Accessories
  – I/O Shield
  – 2 x SATA Data Cables
  – 1 x Screw for M.2 Socket
• Hardware Monitor
  – Fan Tachometer: CPU, Chassis/Water Pump Fans
  – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  – CASE OPEN detection
  – Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
• Form Factor
  – Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
  – Solid Capacitor design
• OS
  – Microsoft Windows^® 10 64-bit / 11 64-bit
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
