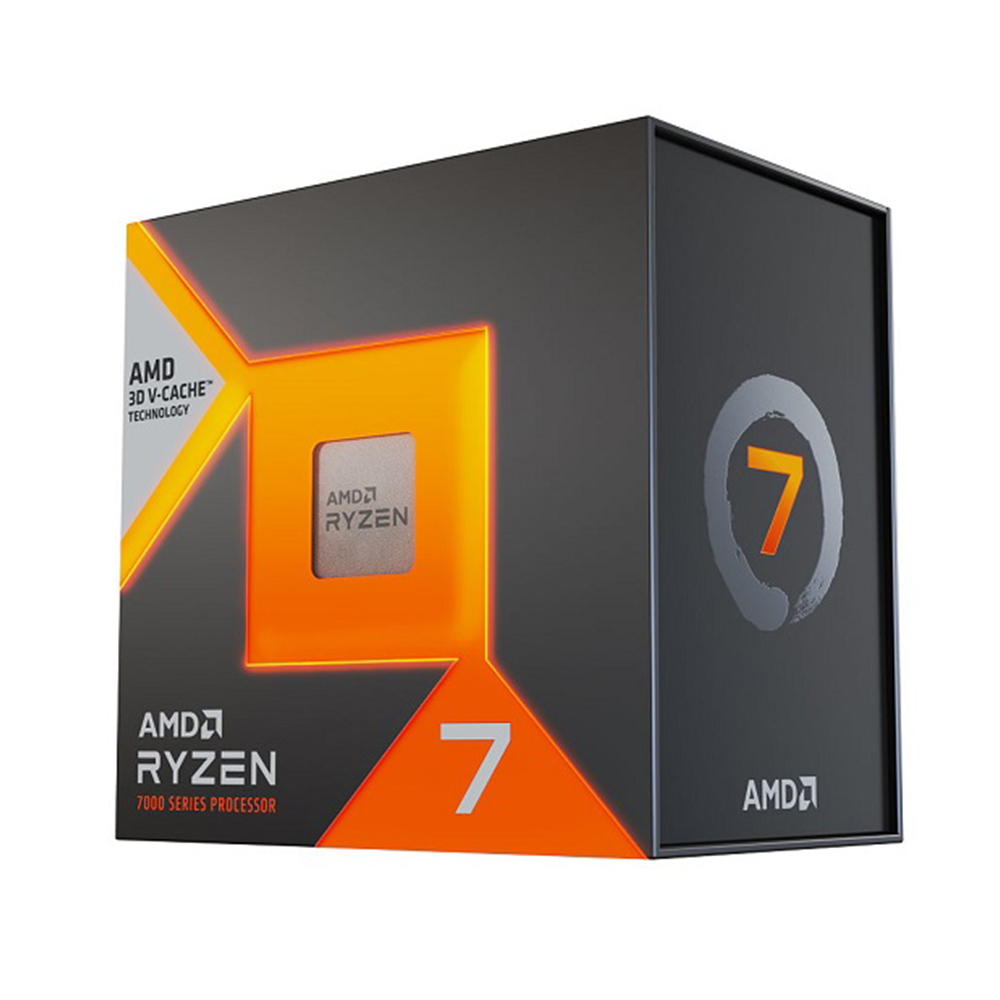

AMD Ryzen™ 7 7800X3D (4.2 GHz / 5 GHz) BOX

AMD Ryzen™ 7 7800X3D

• General Specifications

  NameAMD Ryzen™ 7 7800X3D

  FamilyRyzen

  SeriesRyzen 7000 Series

  Form FactorDesktops , Boxed Processor

  Market SegmentEnthusiast Desktop

  AMD PRO TechnologiesNo

  Regional AvailabilityGlobal

  Former CodenameRaphael AM5

  Processor ArchitectureZen 4

  # of CPU Cores8

  Multithreading (SMT)Yes

  # of Threads16

  Max. Boost Clock Up to 5 GHz

  Base Clock 4.2 GHz

  L1 Cache512 KB

  L2 Cache8 MB

  L3 Cache96 MB

  Default TDP120W

  Processor Technology for CPU CoresTSMC 5nm FinFET

  Processor Technology for I/O DieTSMC 6nm FinFET

  CPU Compute Die (CCD) Size71mm²

  I/O Die (IOD) Size122mm²

  Package Die Count2

  AMD EXPO™ Memory Overclocking TechnologyYes

  Precision Boost OverdriveYes

  Curve Optimizer Voltage OffsetsYes

  AMD Ryzen™ Master SupportYes

  CPU SocketAM5

  Supporting ChipsetsA620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

  CPU Boost TechnologyPrecision Boost 2

  Instruction Setx86-64

  Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

  Thermal Solution (PIB)Not Included

  Recommended CoolerLiquid cooler recommended for optimal performance

  Max. Operating Temperature (Tjmax)89°C

  Launch Date04/06/2023

  *OS SupportWindows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

  Native USB 3.2 Gen 2 (10Gbps)4

  Native USB 3.2 Gen 1 (5Gbps)0

  Native USB 2.0 (480Mbps)1

  Native SATA Ports0

  PCI Express® VersionPCIe® 5.0

  Native PCIe® Lanes (Total/Usable)28 , 24

  Additional Usable PCIe Lanes from Motherboard

  X670E

  12x Gen4

  X670

  12x Gen4

  B650E

  8x Gen4

  B650

  8x Gen4

  NVMe SupportBoot , RAID0 , RAID1 , RAID10

  System Memory TypeDDR5

  Memory Channels2

  Max. Memory128 GB

  System Memory SubtypeUDIMM

  Max Memory Speed

  2x1R

  DDR5-5200

  2x2R

  DDR5-5200

  4x1R

  DDR5-3600

  4x2R

  DDR5-3600

  ECC SupportYes (Requires mobo support)

• Graphics Capabilities

  Graphics ModelAMD Radeon™ Graphics

  Graphics Core Count2

  Graphics Frequency2200 MHz

  USB Type-C® DisplayPort™ Alternate ModeYes

• Product IDs

  Product ID Boxed100-100000910WOF

  Product ID Tray100-000000910

• Key Features

  Supported TechnologiesAMD EXPO™ Technology , AMD Ryzen™ Technologies
