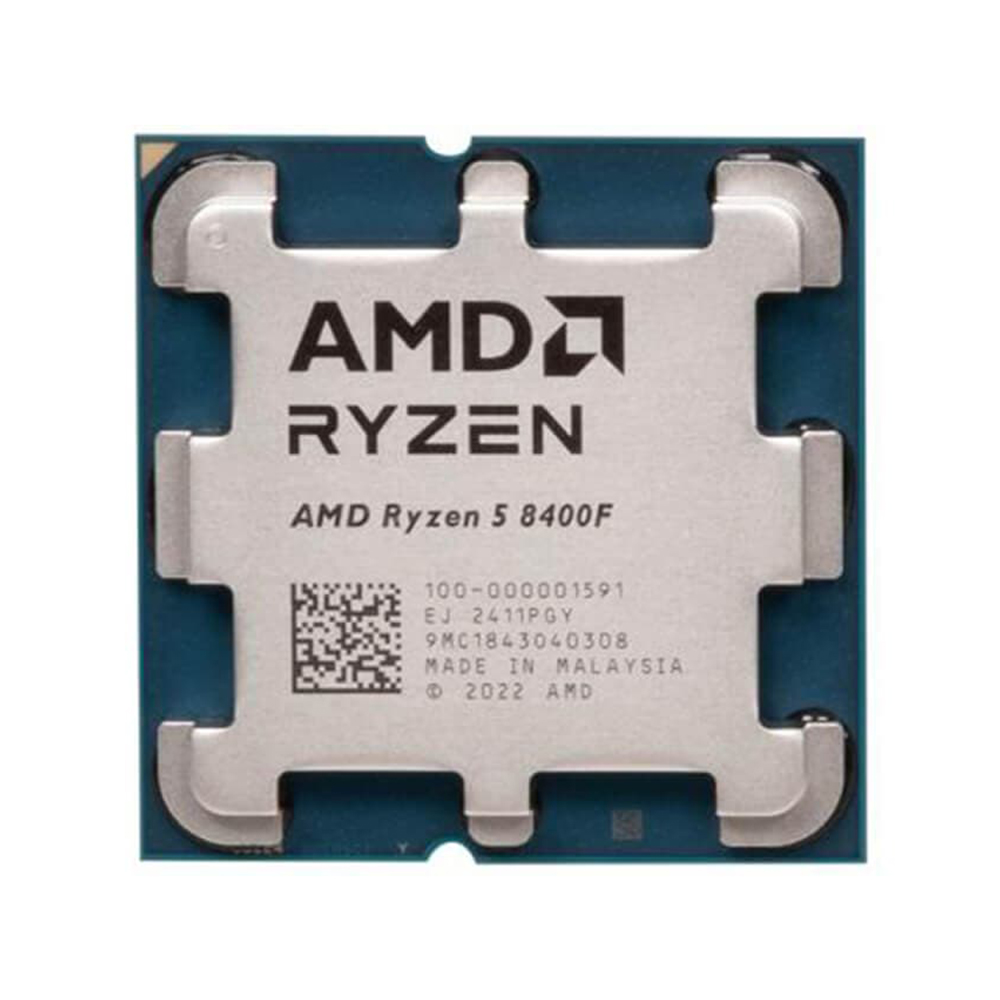

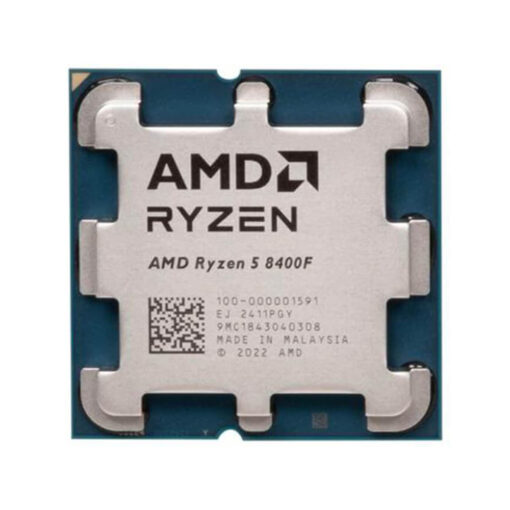

AMD Ryzen™ 5 8400F (4.2 GHz / 4.7 GHz) Tray

AMD Ryzen™ 5 8400F

• General Specifications

  NameAMD Ryzen™ 5 8400F

  FamilyRyzen

  SeriesRyzen 8000 Series

  Form FactorDesktops

  AMD PRO TechnologiesNo

  Regional AvailabilityGlobal

  Former CodenamePhoenix

  Processor ArchitectureZen 4

  # of CPU Cores6

  Multithreading (SMT)Yes

  # of Threads12

  Max. Boost Clock Up to 4.7 GHz

  Base Clock 4.2 GHz

  L2 Cache6 MB

  L3 Cache16 MB

  Default TDP65W

  AMD Configurable TDP (cTDP)45-65W

  Processor Technology for CPU CoresTSMC 4nm FinFET

  CPU Compute Die (CCD) Size178mm²

  Package Die Count1

  Unlocked for Overclocking Yes

  AMD EXPO™ Memory Overclocking TechnologyYes

  Precision Boost OverdriveYes

  Curve Optimizer Voltage OffsetsYes

  AMD Ryzen™ Master SupportYes

  CPU SocketAM5

  Supporting ChipsetsA620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

  CPU Boost TechnologyPrecision Boost 2

  Instruction Setx86-64

  Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64

  Max. Operating Temperature (Tjmax)95°C

  Launch Date04/01/2024

  *OS SupportWindows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

  Native USB 4 (40Gbps)2

  Native USB 3.2 Gen 2 (10Gbps)2

  Native USB 2.0 (480Mbps)1

  PCI Express® VersionPCIe® 4.0

  Native PCIe® Lanes (Total/Usable)20 , 16

  NVMe SupportBoot , RAID0 , RAID1

  System Memory TypeDDR5

  Memory Channels2

  Max. Memory256 GB

  System Memory SubtypeUDIMM

  Max Memory Speed

  2x1R

  DDR5-5200

  2x2R

  DDR5-5200

  4x1R

  DDR5-3600

  4x2R

  DDR5-3600

• Graphics Capabilities

  Graphics ModelDiscrete Graphics Card Required

  AMD SmartAccess MemoryAvailable

• AI Engine Capabilities

  AMD Ryzen™ AINot Available

• Product IDs

  Product ID Boxed100-100001591BOX , 100-100001591CBX

  Product ID Tray100-000001591 (AM5)

  Product ID MPK100-100001591MPK , 100-100001591CPK

• Security, Virtualization, and Manageability

  AMD Enhanced Virus Protection (NX bit)Yes
